1988-1991 Honda Civic/CRX EFV3 Cable to hydro conversion

READ BEFORE PURCHASING. BY PURCHASING YOU AGREE TO OUR TERMS AND CONDITIONS.

We have been in the cable to hydro business since 2009. This kit was designed from what us DYI guys were already doing and sharing on popular tuning forums like Honda-Tech. Welding on a mount plate to use 1992-1995 Civic clutch masters was the thing to do. We did this because the cables were stretching, breaking or we were swapping to a hydraulic transmission with no way to actuate a slave. Back in the earlier days there were not many parts made specifically for the 88-91 Civic platform. Retrofitting, cutting and banging was normal. It never did “feel” like a EG but it did the job. No breaking, stretching cables and we could use the transmission we desired.

What made us different? In 2009 we created something you can bolt on but you still had to source the rest of your parts. We initially used the same idea as what was already being made. The conversion works by installing the master inside the car rather than in the engine bay as most OEMs would. There was not any market eduction needed. Our buyers at the time just knew how it was going to work. Because “race car” you lost amenities like driver side vent tube and fresh duct air and that was not a problem. The 1992-1995 Civic clutch master worked but often extra clearance had to be made to the under dash area or mounting it up side down was necessary. Back then we as a community just accepted it. Over the years we found the Wilwood master just fit better for the given scenario. It offered better routing for the feed and pressure hoses over all. This adaption became part of our complete package. The market was demanding a more comprehensive kit. Over the years we have gone through serval design changes however mounting the clutch master inside the car along with fit and and feel issues has not.

The kit does require removing the driver side vent tubes and fresh duct work. These items can not be reused. This does not delete your heater or A/C just the oem duct work. If you wanted to route air to the driver side we had customers make their own duct using clothes dyer hose.

• NO Slaves. None of our kits come will slaves. The slave is the only part that would make the kit indicative of a transmission. The kit can be used with any transmission that uses a slave cylinder.

Available options

1. EFV3 with Heim joint only (clutch bracket) is those that plan to use an OEM style 92-95 Honda Civic clutch master. This master fits but not great as described above. An OEM thread pitch heim joint and mounting hardware will be included.

2. EFV2-EFV3 rod and Heim update. If you have a complete V1/2 (one that you got from us with a Wilwood Master) it came with a clevis. This kit will change out the bracket for the V3 and come with a replacement push rod and Heim joint. You can reuse your existing Wilwood after you replace the rod with the update. You can also keep and reuse your existing reservoir and clutch line.

3. EFV3 with Heim joint only with OEM clutch line is for the same people that will use an OEM 92-95 Honda Civic clutch master but will include a clutch line. The hydraulic fluid will need to make its way out from inside the car to the slave of your choice. Our clutch line is made specific to the scenario. The kit a consists of 2 lines. One from inside the car with a profile banjo fitting that in most cases will allow you to mount the master right side up. Many often attempt a universal line and 90 off of the master and generally run into trouble with fitting. The inside line then connects to a bulkhead. Because the line will have to pass through the firewall the bulk head will seal the passage. Using a single linen will require you to run a line through a large hole that needed to to fit the fitting end through chaffing the line over time as a result. The second line on our kit will lead to the slave of your choice meaning it will work with most Honda style slave cylinders. The most example extreme example is a complete RWD S2K swap. Our line comes with an adapters at the ends rather than direct thread pitches. That means you can change the fitting at then end when needed
instead of having to replace the entire line.

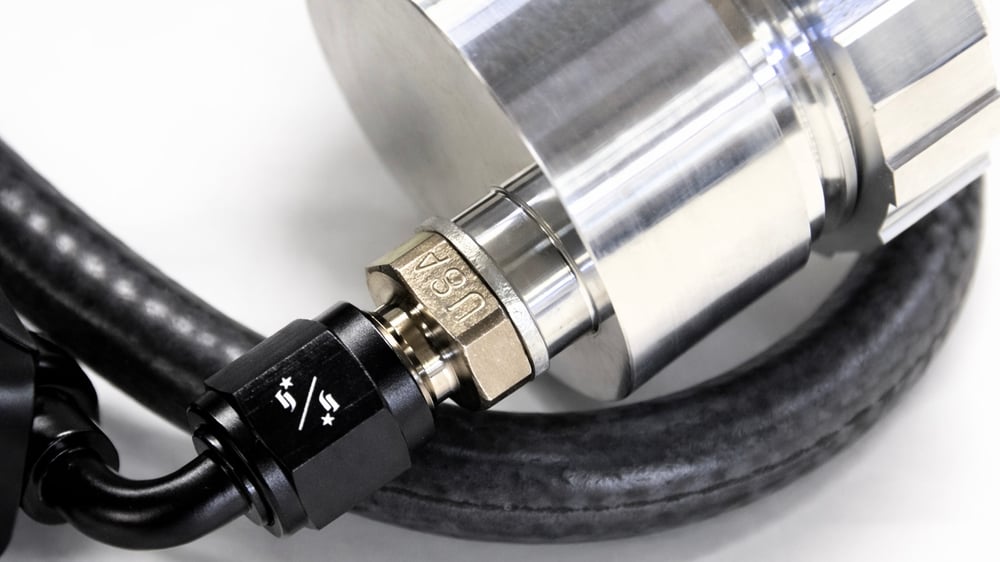

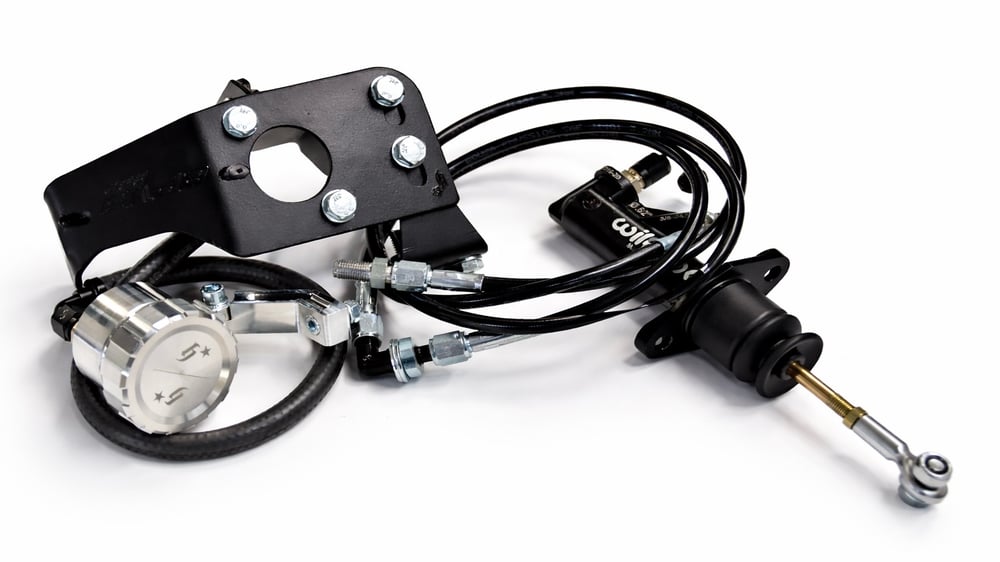

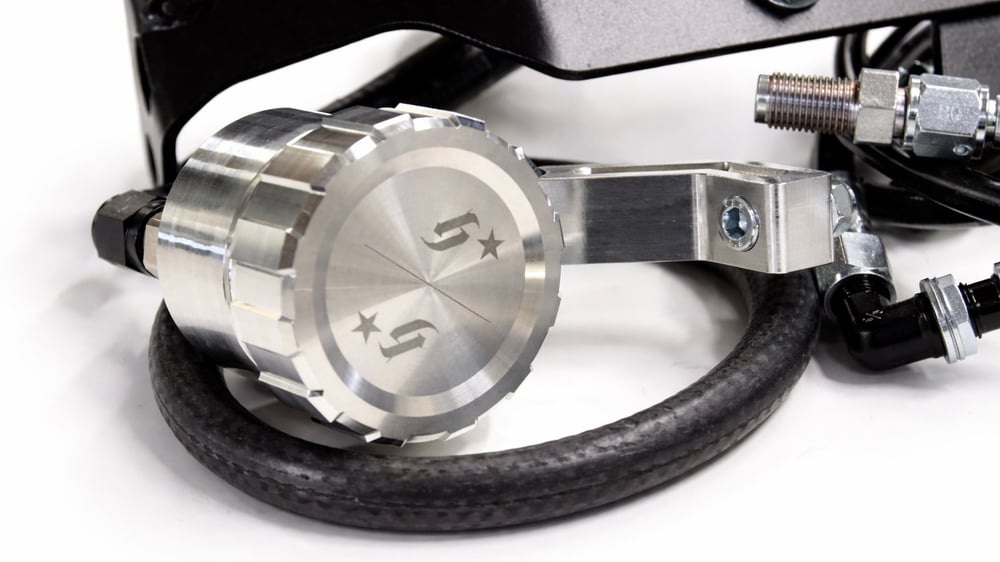

4. EFV3, Wilwood master, Billet Reservoir with hanger and line. We consider this our complete kit. You add the slave that matches your transmission. Whether B or K series this kit is essentially universal. This kit includes a 1/2 or .5 bore Wilwood master. If and when there is a complaint it generally was about “feel”. When swapping to a hydraulic transmission in a 1988-1991 Civic hatch, CRX or sedan an obtuse pedal ratio is created. From the factory the pedal assembly ratio coincided with the extended clutch arm of the original cable style actuated transmission. Hydraulic transmission leaves you with a short clutch fork reducing the amount of mechanical leverage resulting in a pedal feel heavier than before. Most compare their "feel" after our conversion is installed to a natural hydro car with the same type of transmission and clutch combo with disappointment. The conversions WILL NOT make it feel like your buddies EG because it’s not. Our goal was always just to make this old body work with newer transmissions. Serval generations later we’ve looked what can be done to help reduce the heavier than original feel and this combination we are offering in this option is that. This also features our Billet Reservoir.

5. EFV3, Wilwood master, EF Clutch line No Billet Reservoir. If cost or wanting to another type of reservoir is on your mind this kit might be for you. You can add your own remote reservoir of your choice This kit includes a 1/2 or .5 bore Wilwood master. If and when there is a complaint it generally was about “feel”. When swapping to a hydraulic transmission in a 1988-1991 Civic hatch, CRX or sedan an obtuse pedal ratio is created. From the factory the pedal assembly ratio coincided with the extended clutch arm of the original cable style actuated transmission. Hydraulic transmission leaves you with a short clutch fork reducing the amount of mechanical leverage resulting in a pedal feel heavier than before. Most compare their "feel" after our conversion is installed to a natural hydro car with the same type of transmission and clutch combo with disappointment. The conversions WILL NOT make it feel like your buddies EG because it’s not. Our goal was always just to make this old body work with newer transmissions. Serval generations later we’ve looked what can be done to help reduce the heavier than original feel and this combination we are offering in this option is that.

6. EFV3, Wilwood Master, Billet Reservoir, Line Cable B Series slave, Adapter and linkage. This option includes virtually the same parts as 4 but includes a linkage kit. This kit allows you to use our conversion with a cable B series transmission. For example, you're currently using a cable B series but your cable keeps breaking or your tired of the inconsistency of the cable stretch. You're considering swapping to a hydraulic transmission just to convert to a hydraulic system. You do not need to necessarily replace the transmission. The adapter bolts the inlcuded slave to the OEM clutch fork arm eliminating the cable altogether. Just below this description is a link to our YouTube channel showing how this works.

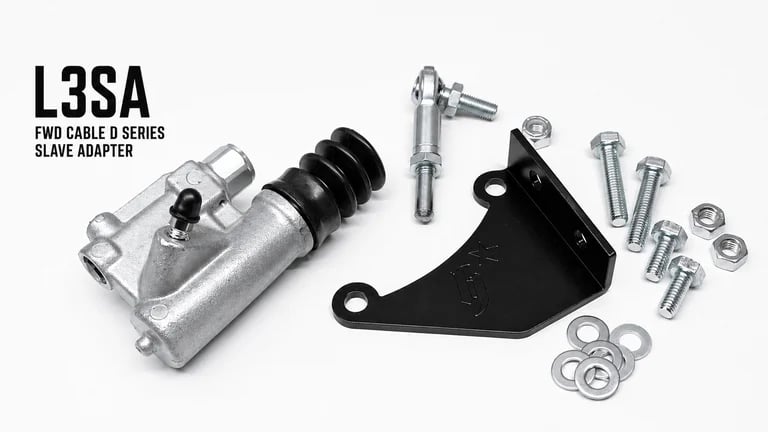

7. Finally! You can now convert your FWD cable D series (L3 or ZC) To hydro. our brand new kit includes an adapter that will allow you to bolt on the included slave to your cable FWD D series. The kit includes everything from option #4.

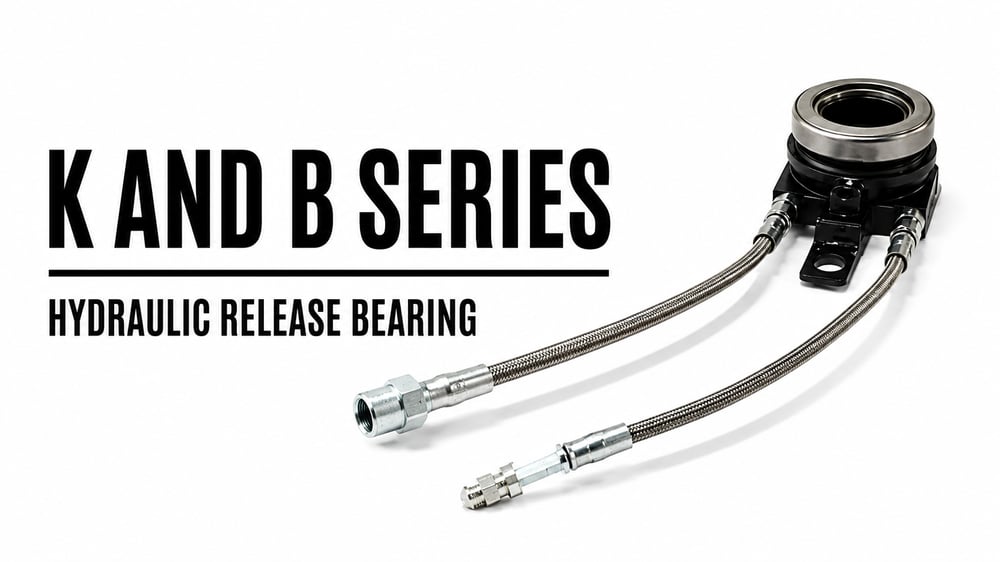

8B. EFV3, 3/4in Wilwood Master, Billet Reservoir, Clutch line and B SERIES Bearing. This option features everything to make it a complete kit but also comes Clutch Master Hydraulic release bearing. This bearing is often used with Twin and Triple disc clutches. The master is sized with a proper 3/4in master recommended by Clutch Master to ensure complete disengagement. This master size in combination with the heavy pressure plate fingers will increase pedal pressure (feel heavier) that is normal and should be expected.

9K. EFV3, 3/4in Wilwood Master, Billet Reservoir, Clutch line and K SERIES Bearing. This option features everything to make it a complete kit but also comes Clutch Master Hydraulic release bearing. This bearing is often used with Twin and Triple disc clutches. The master is sized with a proper 3/4in master recommended by Clutch Master to ensure complete disengagement. This master size in combination with the heavy pressure plate fingers will increase pedal pressure (feel heavier) that is normal and should be expected.

Works with B, D, H, F, J, K transmissions.

Works with performance and twin disc pressure plates.

Life time warranty on conversion steel parts. 1 year warranty on master cylinders.

Fits
89-91 Civic/Crx (LHD only)

Can fit 88 Hatch, Sedan or Crx when you swap pedal assembly to 89-91 Hatch, Sedan or CRX pedal assembly

DOES NOT FIT WAGON AT THIS TIME.

REQUIRES: Removal of the drive side air vent and fresh air duct (can not be reused)

DOES NOT fit RHD at this time.

COMPETITION OFF ROAD USE ONLY!*

Installed on THOUSANDS of EFs worldwide

Please allow 3-5 business days to ship

It is the buyer's responsibility to know the product's fit, function, and use. Unless otherwise specified, NO RETURNS, REFUNDS or CANCELLATIONS. UPS and USPS are used for shipping. The buyer agrees the seller is not liable for any issues relating to delivery, and will contact UPS and USPS directly. This includes (but not limited to) incorrect address, lost, stolen, or damaged packages. By purchasing, the buyer agrees to this policy.
